Audi A5 F5 MIB3 Upgrade (Pre-Facelift)

Audi A5 F5 MIB2 to MIB3 OEM Infotainment Retrofit

This retrofit is developed specifically for Audi A5, S5 and RS5 F5 models (2016–2019) and replaces the original MIB2 system with the latest-generation Audi MIB3 infotainment platform.

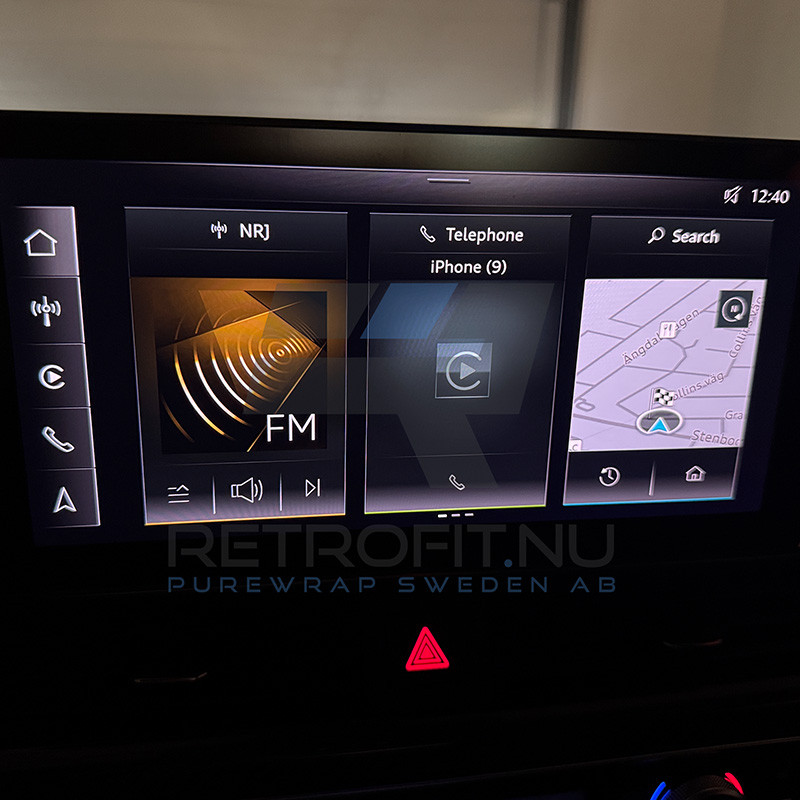

Upgrade your Audi A5 F5 with the modern OEM infotainment system from the facelift models. The MIB3 retrofit delivers a significantly faster interface, full touchscreen operation and a large 10.1” display, perfectly integrated into the interior for a factory-correct look and feel.

Key Features

1. OEM Audi MIB3 infotainment system upgrade, replacing the original MIB2 unit.
2. 10.1” full touchscreen with the latest Audi user interface from facelift models.
3. Wireless Apple CarPlay and Android Auto support (depending on MIB3 configuration).
4. Full OEM-level integration with existing vehicle systems and functions.
5. Professional in-house installation, coding and configuration included.

Compatible Models

This retrofit is suitable for Audi A5 F5 vehicles originally equipped with MIB2:

• Audi A5 F5 (2016–2019)
• Audi S5 F5 (2016–2019)
• Audi RS5 F5 (2018–2019)

Gateway Variant Information

This product is available in two different variants depending on the gateway control unit installed in your vehicle. The correct variant must be selected to ensure full compatibility and proper functionality.

• Variant 1 – Gateway 8W5 / 8W7
  For vehicles equipped with a gateway control unit starting with 8W5 or 8W7.
  These vehicles support this retrofit with the standard component set.
• Variant 2 – Gateway 4M1 / 4M2
  For vehicles equipped with a gateway control unit starting with 4M1 or 4M2.
  These vehicles require additional components and a different hardware configuration to support this retrofit.

If you are unsure which gateway version your vehicle has, please contact us with your VIN before ordering. Selecting the wrong variant may result in incompatibility.

Sound System Variant Information

This retrofit is available in two different variants depending on the sound system originally installed in the vehicle. The selected variant is required to ensure full compatibility with the MIB3 infotainment system.

• Variant 1 – Standard or Audi Sound System
  For vehicles equipped with the standard sound system or Audi Sound System.
  These vehicles support the MIB3 upgrade using the standard audio configuration.
• Variant 2 – Bang & Olufsen (B&O) Sound System
  For vehicles equipped with the factory Bang & Olufsen sound system.
  On these vehicles, the audio system must be fully adapted to work with MIB3, which requires a different amplifier and reconfiguration of the audio wiring.

This is not an upgrade or change of the vehicle’s sound system. The variant selection is based solely on which sound system is already installed in the car and determines the scope of work required for the MIB2 to MIB3 retrofit.

Included in This Upgrade

• 1× Audi MIB3 main control unit
• 1× 10.1” OEM touchscreen display
• 1× Model-specific wiring harness
• 1× USB/AUX or data interface module (vehicle dependent)
• All required installation hardware and materials

Important Information

This is a professional OEM-level retrofit that involves control unit replacement, wiring adaptation and vehicle coding.
Available functions (such as online services or media features) depend on your vehicle’s original equipment and regional Audi backend availability.
For compatibility confirmation, please contact us with your VIN prior to booking.

Installation

To book this retrofit, please use the “Installation” tab and submit the contact form.
This upgrade is offered exclusively as an in-house installation at our workshop in Vellinge, Sweden.
Installation costs are included in the product price unless stated otherwise.
